1. The aggregation equipment and corresponding business terminals are located in Guangzhou and Shenzhen, respectively.
2. Both aggregation devices are registered on the same aggregation platform.
3. The aggregation platform can be deployed in the cloud or privately, and this case will be deployed in the cloud.
4. When conducting business, the aggregation device encapsulates the business IP data packet in the form of Ethernet frames and transmits it to the aggregation platform through a private VPN channel in the form of aggregation communication. After the aggregation platform restores the data, it also transfers it to the destination device in the form of Ethernet frames. Essentially, it forms a wide area bridge structure through aggregation platforms, completing horizontal bottom penetration. Business terminals can directly access each other as long as they meet the same address range.

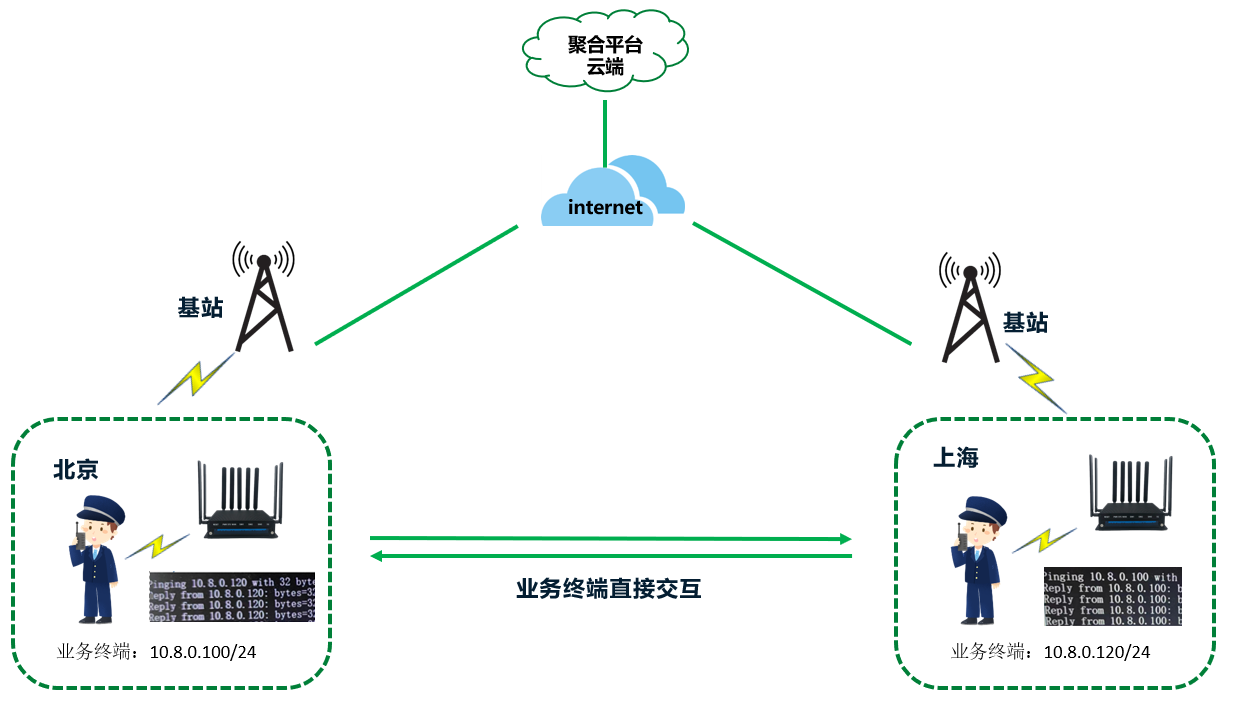

5. All aggregation devices on the same aggregation platform can be considered as forming a virtual local area network. When the business terminals in two places are set to the same local area network address segment, such as the 10.8.0.0/24 segment shown in the diagram, the two business terminals can complete direct communication.
